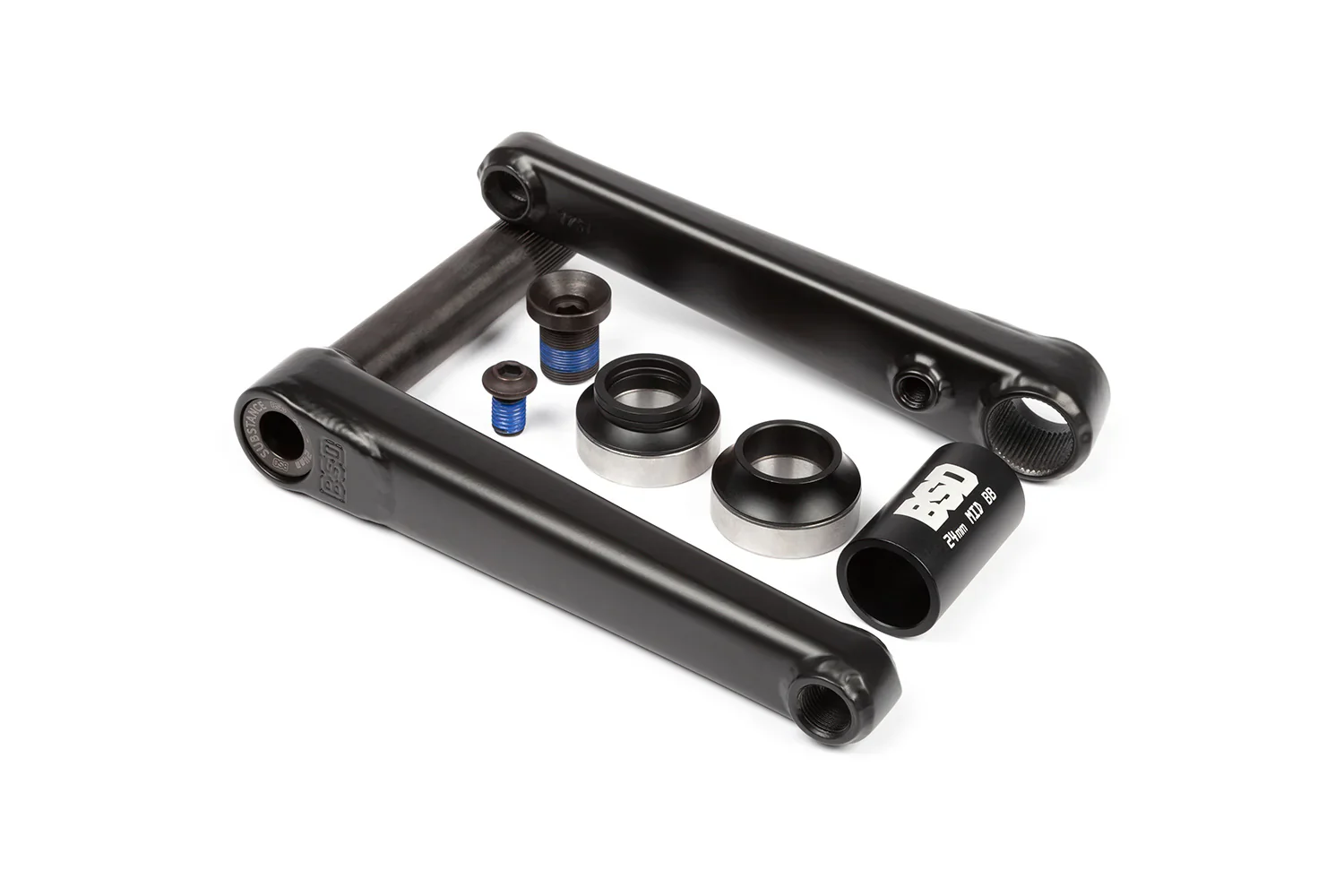

A new updated version of the Substance XL crank with a new invest cast boss design that sits fully flush with the crank arm completely eliminating sharp edges around the ankles.

BSD Mid 24mm bottom bracket included.

KEY FEATURES

• 2.5pc crank.
• Simple single bolt design.
• Heat treated 4130 XL 24mm CNC machined hollow spindle
• RHD/LHD drive compatible
• Flush Boss Design: We've designed the Substance XL V2 crank arm with an invest cast boss that sits super flush eliminating sharp edges that can whack your ankles.
• Oversized Hollow Spindle: The 24mm diameter spindle is stiffer and stronger but being hollow, does not add any extra weight to the cranks compared to 22mm versions.
• Rectangular Arms: The Substance XL V2 crank features heat treated 4130 chromoly arms with a rectangular cross section for increased stiffness and grindability.

SPECS

Material: Heat treated 4130 chromo
Length: 160mm, 165mm, 170mm, or 175mm
Spindle Diameter: 24mm
Weight: 1.90lbs
